CW Brass Cable Glands

brass-binding-screws-posts-001 brass-binding-screws-posts-002



C W Cable Glands

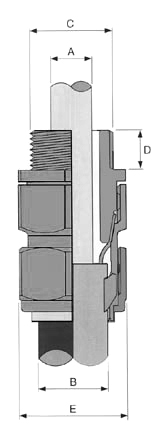

Gland Size Standard Entry
Threads "C" other
options
/sizes		 Min. Thread Length "D" Seal Ranges Armour Wire
Dia.		 Max. Across Corner Dia "E"
Cable Dia. "A" Max. Cable
Diameter "B'
Metric NPT PG Standard Seal Thick Seal
Min. Max. Min. Max.
208
/16		 20 " 11 15 8.6 8.0 13.4 5.5 9.9 0.9 24.4
20S 20 " 13.5 15 11.6 11.4 15.9 7.0 12.4 0.9
/1.25		 26.6
20 20 " 16 15 13.9 15.0 20.9 11.1 17.9 0.9
/1.25		 33.3
25 25 3/4" 21 15 19.9 20.3 27.4 15.0 23.9 1.25
/1.60		 40.5
32 32 1" 29 15 26.2 26.0 33.9 23.0 29.9 1.60
/2.00		 51.0
40 40 1-1/4" 36 15 32.1 31.0 40.4 26.6 35.9 1.60
/2.00		 61.0
50S 50 1-1/2" 36 15 38.1 36.5 46.7 32.9 42.4 2.00
/2.50		 66.5
50 50 2" 42 15 44.0 43.0 53.1 30.3 49.9 2.00
/2.50		 77.7
63S 63 2" 48 15 50.0 48.9 59.4 44.6 55.9 2.50 83.2
63 63 2-1/2" - 15 55.9 58.0 65.9 51.5 58.9 2.50 86.7
75S 75 2-1/2" - 15 61.9 60.6 72.1 56.4 68.9 2.50 101.6
75 75 3" - 15 67.9 64.9 78.5 62.7 74.9 2.50
/3.15		 111.1
90 90 3-1/2" - 15 79.3 76.0 90.4 64.2 79.3 3.15 128.6
All Dimensions in Millimeters
All the Cable Glands are available with accessories and Earth Tags.


Material:

Free Cutting Brass IS 319 type (i) or
Free Cutting Brass as per BS 249  CZ 121 CDA 360 grade Brass type (i) or
High Grade Free Cutting Brass or
Any special Brass Material Composition as per customers requirement

Threads :

ISO Metric (MM Threads).

Finish And Coating :

Natural, Nickle Plated, Tin Plated or any coating as per customer specification.


CW glands are weatherproof glands and can be used in corrosive conditions when protected with shroud.
Positive armour locking, effective earth continuity, increased mechanical strength.

Any kind of special Brass Cable Glands can be developed and supplied exactly as per customer specifications.

Features   To BS 6121 pt. most suitable for SWA plastic or rubber sheathed cable Outer seal grips sheath of cable. for use in most climatic conditions Weather proof and water proof design. Has separate armour lock rings. can be supplied with integral earth facility.
Gland Size   20mm 25mm 32mm 40mm 16mm 50mm 63mm  50mms 75mm 90mm 1/2 3/4 1 11/4 11/2 2 2/12 NPT M12 m16 M20 M25 M32 M40 M50 M63 M75 threaded cable glands Metric fittings
IP rating   IP 66
