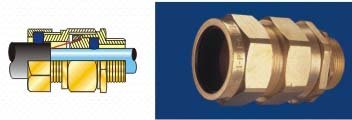

E1 W Brass Cable Glands

brass-binding-screws-posts-001 brass-binding-screws-posts-002

  Brass E1W Cable Glands

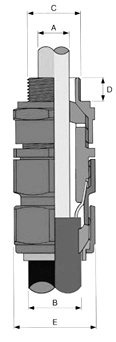

Gland Size

 Standard Entry Threads


"C" other options/sizes


 Min. Thread Length "D"

   Armour Wire Dia.

 Max. Across Corner Dia "E"




Seal Ranges


Cable Dia. "A"

 Cable Diameter "B'

Metric

 NPT

 PG

 Standard Seal

 Thick Seal

Min. Max. Min.

 Max.

 Min.

 Max.

20/16

 20

 "

 11

 15

 3.1

 8.6

 8.0

 13.4

 5.5

 9.9

 0.9

 24.4

20S

 20

 "

 13.5

 15

 6.1

 11.6

 11.4

 15.9

 7.0

 12.4

 0.9/
1.25

 26.6

20

 20

 "

 16

 15

 6.5

 13.9

 15.0

 20.9

 11.1

 17.9

 0.9/
1.25

 33.3

25

 25

 3/4"

 21

 15

 11.1

 19.9

 20.3

 27.4

 15.0

 23.9

 1.25/
1.60

 40.5

32

 32

 1"

 29

 15

 17.0

 26.2

 26.0

 33.9

 23.0

 29.9

 1.60/
2.00

 51.0

40

 40

 1-1/4"

 36

 15

 22.0

 32.1

 31.0

 40.4

 26.6

 35.9

 1.60/ 2.00

 61.0

50S

 50

 1-1/2"

 36

 15

 29.5

 38.1

 36.5

 46.7

 32.9

 42.4

 2.00/
2.50

 66.5

50

 50

 2"

 42

 15

 35.6

 44.0

 43.0

 53.1

 38.3

 49.9

 2.00/
2.50

 77.7

63S

 63

 2"

 48

 15

 40.1

 49.9

 48.9

 59.4

 44.6

 55.9

 2.50

 83.2

63

 63

 2-1/2"

 -

 15

 47.2

 55.9

 58.0

 65.9

 51.5

 58.9

 2.50

 88.7

75S

 75

 2-1/2"

 -

 15

 52.8

 61.9

 60.6

 72.1

 56.4

 68.9

 2.50

 101.6

75

 75

 3"

 -

 15

 59.1

 67.9

 64.9

 78.5

 62.7

 74.9

 2.50/
3.15

 111.1

90

 90

 3"

 -

 -

 66.6

 79.3

 76.0

 90.4

 64.2

 79.3

 3.15

 128.6



All Dimensions in Millimeters


Features   To BS 6121 pt. 1 suitable for SWA or rubber sheathed cables. Outer seal grips bedding layer of cable. for use in most climatic conditions Weather proof and water proof. Design has separate armour lock rings. can be supplied with integral earth facility. E1W glands are weatherproof glands and can be used in corrosive conditions when protected with shroud.  Positive armour locking, effective earth continuity, increased mechanical strength.  All the E1W cable glands and gland kits packs pf E1W Cable Glands are available with accessories and Earth Tags.
Gland sizes   20 mm to 75 mm (S & L)
20mm, 25mm, 32mm, 40mm, 16mm, 50mm, 63mm, 75mm, 90mm, 1/2 3/4 1 11/4 11/2 2 2/12 NPT M12, M16, M20, M25, M32, M40, M50, M63, M75, threaded cable glands Metric fittings
IP rating   IP 66
